Air Cooler Unit
>
|
| Place of Origin | China |
| Brand Name | HGI |
| Certification | CE，CCC，CB, SASO, Saber, ROHS, GCC |
| Model Number | CV |
HGI Unit Cooler offering provides solutions for a broad range of applications, including walk-in coolers and freezers, large units for refrigerated warehouses, as well as small under-counter reach-in units for use in kitchens and fast food restaurants.
Models Introduction
Air cooler with fluorine
EA series commercial angle-type air cooler
EC series commercial double side air cooler
EE series commercial double side blow air cooler
EH series commercial high-efficiency ceilingtype air cooler
ED series industrial double side blow air cooler
EL series industrial ceiling-type air cooler
EN series large ceiling-type air cooler
EF series floor type quick freezing air cooler
EW series water defrosting ceiling-type air cooler
Refrigeration capacity correction coefficient and selection
guide of air cooler with fluorine
Air cooler with ethylene glycol
ECG series commercial dual discharge air cooler with ethylene glycol
EHG series commercial ceiling type air cooler with ethylene glycol
ECG series industrial dual discharge air cooler with ethylene glycol
ELG seriesindustrial ciling type air cooler with ethylene glycol
Condenser products
CL series vertical side mounted condenser
CP series horizontal plate-type condenser
CV series V-type condenser
Heat exchange correction cofficient and selection guide of condensers

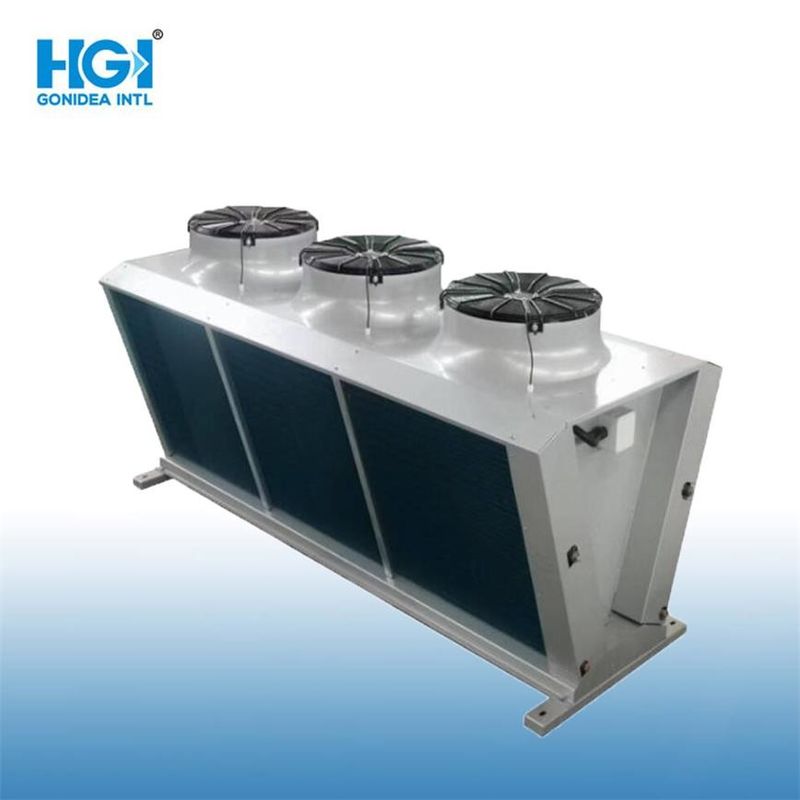

I. Product Overview:
CV series condenser is designed with V- shaped structure, air inlet on both sides and air outlet on top and larger windward area;
it is mainly equipped with the remotely mounted pistons and parallel units or screw units requiring high heat exchange. This
series of products has the following characteristics:
1. Enclosure: High-quality galvanized steel plate sprayed with powder coating (silver gray RAL 9006); the fan tube is designed
with overall stretching large rounded high air tube, it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.
2. Coil: Tube diameter φ9.5, female thread copper pipe, tube spacing 25 X21.65 in triangular arrangement, high heat exchange eficiency.
3. Corrugated aluminum sheet made of hydrophilic aluminum foil is adopted, with the sheet spacing of 2.1mm;
4. Fan: It is designed with standard 3P/380V/50Hz power supply; 1-6 φ630 fans are adopted with 4-pole and 6-pole motors; the quantity of φ800 fans in single row ranges from 1 to 8, and from4to 16 in double rows, and the number of motor poles is 6.
5. The test pressure of the product is 32bar.
6. It is compatible with R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
HGI Introduction
Our company has a complete product line from high-efficiency air coolers, condenser products to diferent types of compression condensing units, screw-type parallel compressor units, quick- freezing cooling sources, etc., which can fully meet the application needs of different scales and different levels. Attaching great importance to the construction of design capabilities in engineering refrigeration system, we can provide professional technical support for the whole process of project from early design, equipment selection, installation and commissioning, etc., to ensure the overall energy eficiency and operation effect of the project.
Focusing on refrigeration for nearly 30 years, by virtue of experienced R & D team, top 500 enterprises management experience, rich technical expertise, production and processing capabilities, we established a sound pre-sales technical support, after- sales service system for contractors and dealers to bring a new customer experience and the best project solutions. We not only manufacture refrigeration equipment, but also provide technical solutions; to provide customers with first-class services is our consistent purpose and goal. Blessed with rich technical expertise, production and manufacturing capabilities, our company adheres to the vision of pursuing employee's happiness and customer's trust;
"HGI" brand refrigeration products have a high reputation at home and abroad, which are highly praised and recognized by our customers. At present, we are cooperating with the customers including cold chain logistics enterprises, such as GLP, Asia Cold, Orange3, Jiangxi Yufeng, etc., food enterprises, such as Pingrong Food, Zhenzhen Laolao, Qingmei, Weizhixiang, Synear, Zuming, Mckintey, Holilai, etc, slaughtering enterprises, such as Wen's, Xinning, etc., edible fungus factories, such as Xiangru Biotechnology, Guizhou Fengyuan, Lisa, Kangyuan Biology, etC, e-commerce
enterprises, such as PDD Vegetables, Dingdong Vegetables, Miss Fresh, etc, as well as Zhejiang Medicine.
