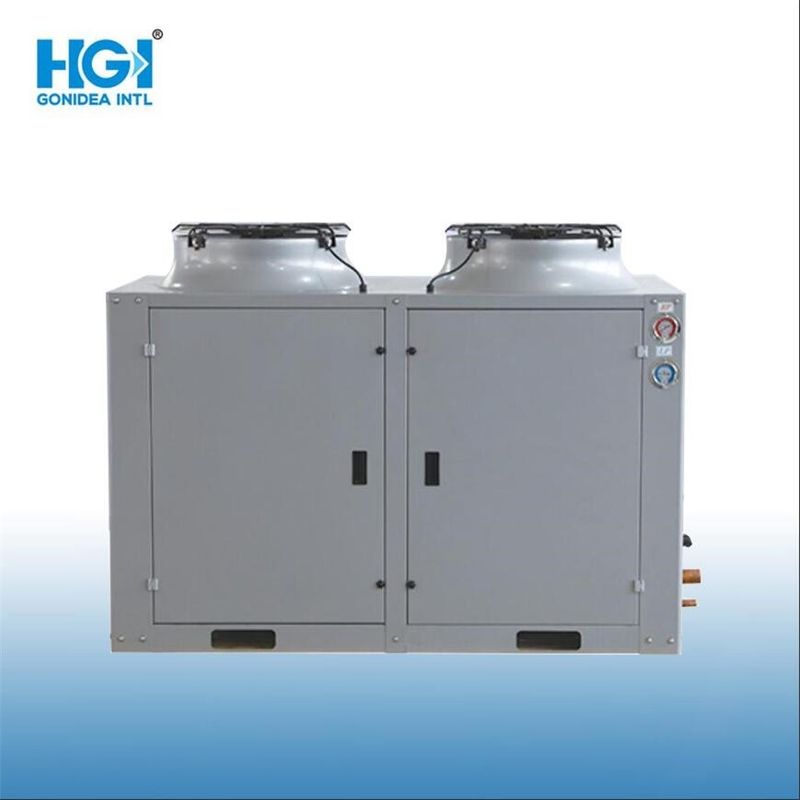

Cold Room Air Conditioner Part Heat Exchanger Box-Type Condensing Cooler Unit

HGI Condensing Units are manufactured in commercial and industrial types according to your cooling needs for your cold and frozen enclosure cooling needs.Commercial type cooling devices are suitable for your market and small capacity industrial facilities, while industrial cooling devices are suitable for high capacity cooling facilities.The new environmentally friendly gas options are produced in accordance with Eco-Design.In addition to its smooth operation even at high outdoor temperatures with its standard models, the device design for warmer regions can be changed according to the need.You can request HGI condenser units as a package with cooler, control panel and expansion valve.

HGI Introduction

Our company has a complete product line from high-efficiency air coolers, condenser products to diferent types of compression condensing units, screw-type parallel compressor units, quick- freezing cooling sources, etc., which can fully meet the application needs of different scales and different levels. Attaching great importance to the construction of design capabilities in engineering refrigeration system, we can provide professional technical support for the whole process of project from early design, equipment selection, installation and commissioning, etc., to ensure the overall energy eficiency and operation effect of the project.

Focusing on refrigeration for nearly 30 years, by virtue of experienced R & D team, top 500 enterprises management experience, rich technical expertise, production and processing capabilities, we established a sound pre-sales technical support, after- sales service system for contractors and dealers to bring a new customer experience and the best project solutions. We not only manufacture refrigeration equipment, but also provide technical solutions; to provide customers with first-class services is our consistent purpose and goal. Blessed with rich technical expertise, production and manufacturing capabilities, our company adheres to the vision of pursuing employee's happiness and customer's trust;
"HGI" brand refrigeration products have a high reputation at home and abroad, which are highly praised and recognized by our customers. At present, we are cooperating with the customers including cold chain logistics enterprises, such as GLP, Asia Cold, Orange3, Jiangxi Yufeng, etc., food enterprises, such as Pingrong Food, Zhenzhen Laolao, Qingmei, Weizhixiang, Synear, Zuming, Mckintey, Holilai, etc, slaughtering enterprises, such as Wen's, Xinning, etc., edible fungus factories, such as Xiangru Biotechnology, Guizhou Fengyuan, Lisa, Kangyuan Biology, etC, e-commerce
enterprises, such as PDD Vegetables, Dingdong Vegetables, Miss Fresh, etc, as well as Zhejiang Medicine.

I. Product Overview:
Product Overview:
TF series condensing unit is equipped with semi-hermetic Frascold compressor
from Italy as the main component, which is designed with double-layer and
large box structure; this series of products have the following features:
1. The semi-hermetic Frascold compressor and double-stage compressor above
8HP are mounted.
2. The unit is designed for medium temperature, low temperature and low
temperature quick-freezing applications, of the medium-temperature unit is
mainly used for cold store of -5~5.C, the low-temperature unit is mainly used
for cold store of -15--35 °C, and the low-temperature quick-freezing unit is
fitted with a single double-stage compressor, mainly used for
low-temperature quick-freezing store of -35~-55 °C.
3. The enclosure is made of galvanized steel plate sprayed with powder coating
in silver gray for excellent corrosion resistance, quite suitable for outdoor use;
it is designed with double-layer structure, namely upper and lower, which has
a large operating space and is convenient to clean the condenser and chassis;
the compressor's chassis cover is connected with hinge structure, which is
convenient for operation and maintenance.
4. The chassis panel is attached with honeycomb sound-insulation foam to
effectively reduce the operating noise and sheet metal resonance of the unit.
5. The fan tube is designed with overall stretching high air tube, it has the
characteristics of excellent air guiding effect, low noise and aesthetic
appearance.
6. The condenser is designed in U-shaped structure, with fewer pipes, large air

intake area and high heat exchange eficiency.
7. Fitted with double fans in design, it can effectively reduce the noise of fan,

facilitate condensing fan control and improve
the operation reliability of the unit.
8. The unit is fully equipped with standard components including damping pipe,

oil separator, gas separator, etc.
9. It is compatible with R404A, R507A, R448, R449, R22 and other refrigerants.
