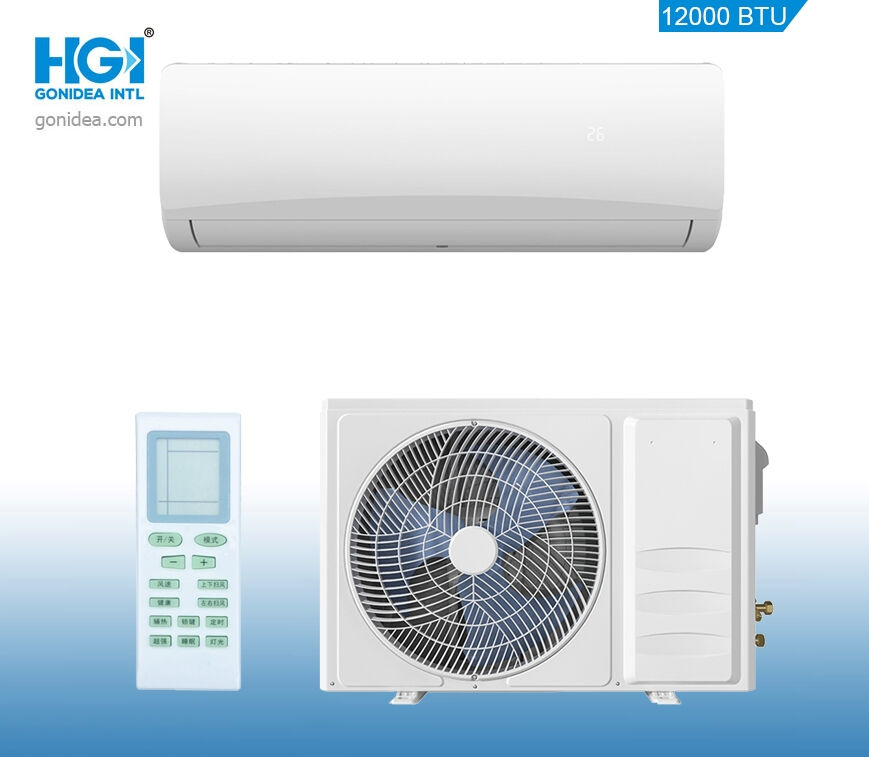

Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp35c
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp35c
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp35c
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp35c
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp35c
Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp35c

Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp35c

Certification CE, CCC, RoHS, GS, CB
Product Details
Model NO.:
SP/J-BP35C
Usage:
Room
Indoor Machine Noise:
42/39/36/33
China Energy Efficiency Standard:
Level 2
Cooling/Heating:
Cooling Only
Power Source:
Electrical
Power Type:
DC
Condition:
New
Rated Power Supply:
1pH / 220-240V/50Hz
Ation Temperature Range:
16℃-43℃
Transport Package:
Carton
Specification:
R410A
Trademark:
HGI
Origin:
China
HS Code:
8415102100
Production Capacity:
500000/PCS Per Year
Highlight:

Wall mounted air conditioner 12000BTU

,

Inverter frequency air conditioner low-power

,

Fashionable wall hanging air conditioner

Payment & Shipping Terms
Minimum Order Quantity
100
Price
280
Product Description

Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation INERTER Frequency Air Conditioner SP/J-BP35C

Product Description

DC INVERTERSP/J-BP26CSP/J-BP35CSP/J-BP50CSP/J-BP70C
Rated Power supply1Ph / 220-240V/50Hz1Ph / 220-240V/50Hz1Ph / 220-240V/50Hz1Ph / 220-240V/50Hz
Workable Power supply1Ph / 150-260V/50Hz1Ph / 150-260V/50Hz1Ph / 150-260V/50Hz1Ph / 150-260V/50Hz
CoolingCapacity (btu/h)9000120001800024000
Capacity (W)2500(150~3000)W3200(150~3600)W4800(1250-5910)6810(1830~7800)
Input (W)900(100~1200)W1180(75~1560)W1780(330-2340)2350(410~2830)
Rated current (A)4.0 (0.8~5.3)A5.3(0.5~6.9)A7.9(1.7~12.0)10.5(2.3~12.3)
EER2.782.712.702.90
HeatingCapacity (btu/h)////
Capacity (W)////
Input (W)////
Rated current (A)////
COP////
Max. input consumption (W)1600172025203100
Max. current (A)8.509.0013.0014.80
CompressorTypeRotaryRotaryRotaryRotary
BrandGMCC,GREEGMCCHIGHLYGMCC
Indoor unitIndoor CoilFin materialGolden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&
Tube outside dia.and materialφ7mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Grooved
Indoor air flow (Turbo/Hi/Mi/Lo) (M3/h)500/450/370/320550/500/450/370850/750/650/5801050/950/800/680
Rated input Power(cooling/heating) (W)30303545
Rated current (cooling/heating) (A)0.20.20.350.4
Moisture Removal (KG/h)0.80.822.6
Noise level(Turbo/Hi/Mi/Lo) (dB(A))39/34/32/3042/39/36/3345/42/39/3749/47/45/42
Unit dimension (W*H*D)695*275*190780*275*190910*295*2051030*360*248
Packing (W*H*D)763*322*241847*322*241975*340*2551094*434*324
Net weight (KGs)66.51013
Gross weight (KGs)88.51216
Outdoor unitOutdoor coilFin materialGolden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&
Tube outside dia.and materialφ5mm, Inner Groovedφ5mm, Inner Groovedφ7mm, Inner Groovedφ5mm, Inner Grooved
Noise level (dB)50525559
Unit dimension (W*D*H) (mm)610*295*495710*295*495760*305*550780*350*600
Packing (W*D*H) (mm)704*324*530818*328*530869*339*588896*387*625
Net weight (KGs)17192430
Gross weight (KGs)20222834
Refrigerant typeR410A / 340gR410A / 430gR410A / 770gR410A / 810g
Refrigerant pipeLiquid side (mm)Φ6Φ6Φ6Φ6
Gas side (mm)Φ9Φ9Φ12Φ12
Max. refrigerant pipe length (m)10101015
Max. difference in level (m)55510
Operation temperature range16ºC-43ºC16ºC-43ºC16ºC-43ºC16ºC-43ºC
Ambient temperature range16ºC-48ºC16ºC-48ºC16ºC-48ºC16ºC-48ºC
Application area (MM2)10~1713~2720~4030~55
Sets per 40ft HQ/20ft 40HQ/20360/167334/143267/-184 / -
