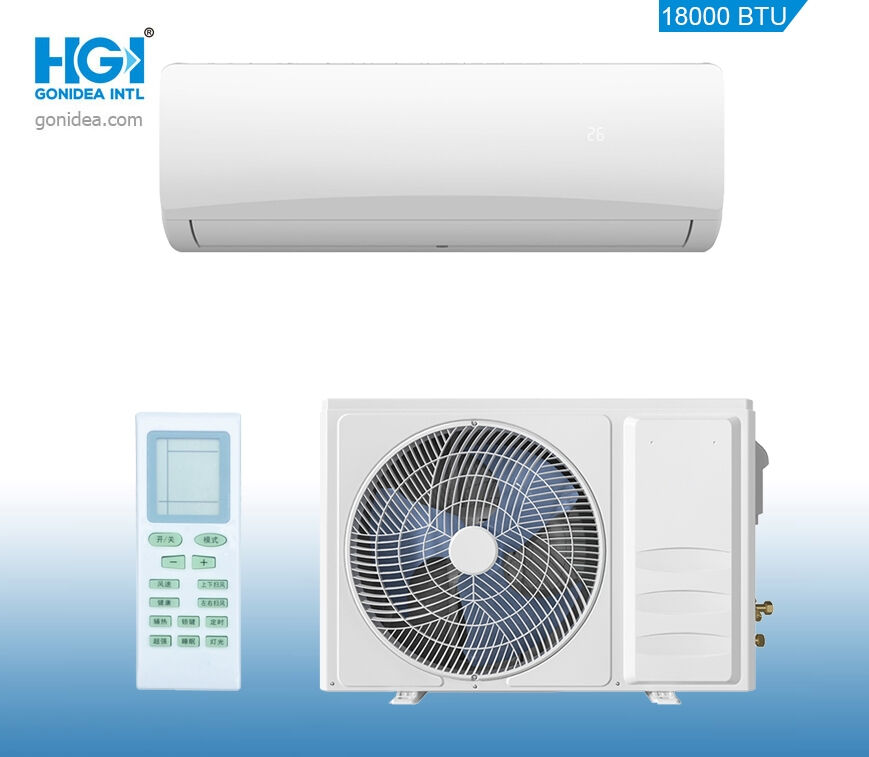

Fashionable Wall Mounted Air Conditioner Series 18000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T50CH6
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T50CH6
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T50CH6
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T50CH6
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T50CH6
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T50CH6
Fashionable Wall Mounted Air Conditioner Series 18000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T50CH6

Fashionable Wall Mounted Air Conditioner Series 18000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T50CH6

Certification CE, CCC, RoHS, GS, CB
Product Details
Model NO.:
SP/J-T50CH6
Usage:
Room
Indoor Machine Noise:
45/42/39/37
China Energy Efficiency Standard:
Level 2
Cooling/Heating:
Cooling/Heating
Power Source:
Electrical
Power Type:
DC
Condition:
New
Rated Power Supply:
1pH / 220-240V/50Hz
Ation Temperature Range:
-7℃-43℃
Transport Package:
Carton
Specification:
R410A
Trademark:
HGI
Origin:
China
HS Code:
8415102100
Production Capacity:
500000/PCS Per Year
Payment & Shipping Terms
Minimum Order Quantity
100
Price
280
Product Description
Fashionable Wall Mounted Air Conditioner Series 18000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner SP/J-T50CH6
Product Description

DC FIXED FREQUENCY  SP/J-T35C6 SP/J-T35CH6 SP/J-T50CH6 SP/J-T70CH6
Rated Power supply  1Ph / 230V/60Hz 1Ph / 230V/60Hz 1Ph / 230V/60Hz 1Ph / 230V/60Hz
Workable Power supply 1Ph / 198-264V/60Hz 1Ph / 198-264V/60Hz 1Ph / 198-264V/60Hz 1Ph / 198-264V/60Hz
Cooling T3 Capacity  (btu/h) 12000 12000 18000 24000
Capacity  (W) 3300 3300 4770 6180
Input  (W) 1200 1200 1830 2290
Rated current  (A) 5.40  5.40  8.20  10.20
EER(Btu/h/W/W) 9.38  9.38  8.89  9.21
EER(W/W) 2.75  2.75  2.61  2.70
Heating  Capacity  (btu/h) / 11200 18000 24000
Capacity  (W) / 3300 5280 7000
Input  (W) / 900 1560 2100
Rated current  (A) / 4.00  7.00  9.30
EER(Btu/h/W/W) / 12.51  11.55  11.37
EER(W/W) / 3.67  3.38  3.33
Max. input consumption   (W) 1680 1680 2260 3000
Max. current  (A) 8.6 8.6 11.6 14.6
Compressor Type Rotary Rotary Rotary Rotary
Brand GMCC,GREE GMCC,GREE GMCC,GREE GMCC,GREE
Indoor unit  Indoor Coil  Fin material Golden& hydrophilic Golden& hydrophilic Golden& hydrophilic Golden& hydrophilic
Tube outside dia.and material φ7mm, inner Grooved φ7mm, inner Grooved φ7mm, inner Grooved φ7mm, inner Grooved
Indoor air flow (Turbo/Hi/Mi/Lo)  (M3/h)  850/750/650/580 850/750/650/580 1050/950/800/680 1150/980/800/700
Rated input Power(cooling/heating)  (W) 35 35 45 45
Rated current  (cooling/heating)  (A) 0.35 0.35 0.4 0.4
Moisture Removal  (KG/h) 1.0 1.0 1.8 2.6
Noise level(Turbo/Hi/Mi/Lo)  (dB(A)) 43/39/37/33 43/39/37/33 45/42/39/37 49/47/45/42
Unit dimension (W*H*D) 910×295×205 910×295×205 1075×330×240 1075×330×240
Packing (W*H*D) 975×340×255 975×340×255 1146×412×318 1146×412×318
Net weight  (KGs) 11 11 15 15
Gross weight  (KGs) 13 13 18 18
Outdoor unit  Outdoor coil Fin  material Golden& hydrophilic Golden& hydrophilic Golden& hydrophilic Golden& hydrophilic
Tube outside dia.and material φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Noise level  (dB) 52 52 55 58
Unit dimension (W*D*H)   (mm) 760×305×550 760×305×550 850×385×700 900×395×700
Packing   (W*D*H)  (mm)  869×339×588 869×339×588 960×420×744 1033×439×733
Net weight  (KGs) 29 30 43 46
Gross weight  (KGs) 34 35 49 52
Refrigerant type R410A R410A R410A R410A
Refrigerant pipe Liquid side  (mm) Φ6 Φ6 Φ6 Φ6
Gas side  (mm) Φ12 Φ12 Φ12 Φ15.88
Max. refrigerant pipe length (m)  10 10 10 15
Max. difference in level  (m)  5 5 5 10
Operation temperature range  16ºC-52ºC -7ºC-52ºC -7ºC-52ºC -7ºC-52ºC
Ambient temperature range  16ºC-55ºC -7ºC-55ºC -7ºC-55ºC -7ºC-55ºC
Application area   (MM2)  13~28 13~28 20~40 30~55
Sets per 40ft HQ/20ft   40HQ/20 267/- 267/- 146/- 135/61
