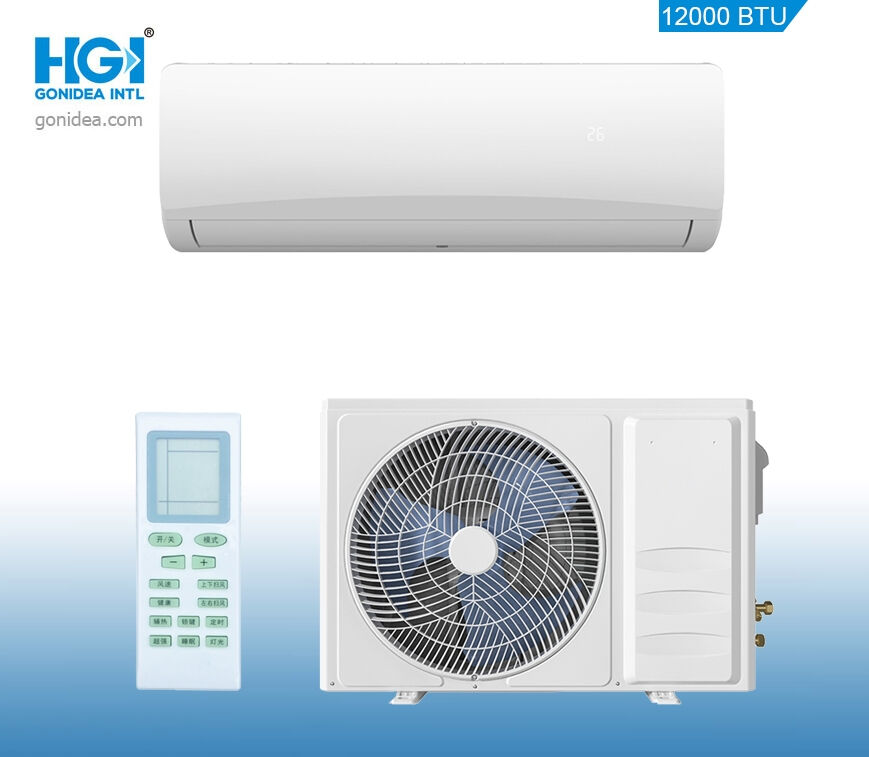

Fashionable Wall Mounted Air Conditioner Series 12000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T35CH
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T35CH
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T35CH
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T35CH
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T35CH
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T35CH
Fashionable Wall Mounted Air Conditioner Series 12000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T35CH

Fashionable Wall Mounted Air Conditioner Series 12000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner Sp/J-T35CH

Product Details
Payment & Shipping Terms
Minimum Order Quantity
100
Price
280
Product Description
Fashionable Wall Mounted Air Conditioner Series 12000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner SP/J-T35CH
Product Description

DC INVERTER   SP/J-BP3A-26CH SP/J-BP3A-35CH SP/J-BP3A-50CH SP/J-BP3A-70CH
Rated Power supply 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz
Workable Power supply 1Ph / 150-260V/50Hz 1Ph / 150-260V/50Hz 1Ph / 150-260V/50Hz 1Ph / 150-260V/50Hz
Cooling Capacity  (btu/h) 9000 12000 18000 24000
Capacity  (W) 2600(150~3200)W 3300(150~3900)W 5300(1200-6200) 7000(1500~8000)
Input  (W) 630(60~1100)W 800(60~1400)W 1250(120-1700) 1760(135~2250)
Rated current  (A) 2.8 (0.3~4.9)A 3.6(0.3~6.3)A 5.6(1.3~7.5) 7.8(1.4~10.0)
Pdesign  (W) 2600  3300  5200  7000
EER 8.50  8.50  9.35  8.90
Heating Capacity  (btu/h) 9000 12000 18000 24000
Capacity  (W) 2800(150~3800)W 3500(150~4500)W 5800(1250-6600) 7500(1500~9000)
Input  (W) 730(60~1100)W 900(60~1400)W 1500(160-1850) 2050(170~2850)
Rated current  (A) 3.3(0.3~4.9) 4.0(0.3~6.3)A 6.6(1.5~8.2) 9.2(1.6~12.5)
Pdesign  (W) 2450  2550  4550  5600
COP 4.60 4.60 4.8 4.60
Max. input consumption   (W) 1600  1720  2400  3050
Max. current  (A) 8.00  9.00  11.00  13.70
Compressor Brand  GMCC GMCC GMCC GMCC
Type  Rotary Rotary Rotary Rotary
Indoor unit  Indoor Coil  Fin material Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic&
Tube outside dia.and material φ5mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Indoor air flow (Turbo/Hi/Mi/Lo)  (M3/h)  600/500/450/400 650/550/500/450 1050/950/800/680 1200/1100/950/800
Rated input Power(cooling/heating)  (W) 30 30 35 45
Rated current  (cooling/heating)  (A) 0.2 0.2 0.35 0.4
Moisture Removal  (KG/h) 1.2 1.2 1.8 2.6
Noise level(Turbo/Hi/Mi/Lo)  (dB(A)) 42/39/36/33 42/39/36/33 47/44/41/39 49/47/45/42
Unit dimension (W*H*D) 810×295×205 810×295×205 955x335x230 1075×330×240
Packing (W*H*D) 875×340×255 875×340×255 1020×400×300 1146×412×318
Net weight  (KGs) 8 8 12 15
Gross weight  (KGs) 10 10 14 18
Outdoor unit  Outdoor coil Fin  material Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic&
Tube outside dia.and material φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Noise level  (dB) 50 52 55 59
Unit dimension (W*D*H)   (mm) 710×295×495 730×305×550 850×385×700 920×425×795
Packing   (W*D*H)  (mm)  818×328×530 835×340×580 960×420×744 1050×475×845
Net weight  (KGs) 23 23.5 38 46
Gross weight  (KGs) 26 26.5 42 50
Refrigerant type R32 R32 R32 R32
Refrigerant pipe Liquid side  (mm) Φ6 Φ6 Φ6 Φ6
Gas side  (mm) Φ9 Φ9 Φ12 Φ15.88
Max. refrigerant pipe length (m)  10 10 10 15
Max. difference in level  (m)  5 5 5 10
Operation temperature range  -7ºC-43ºC -7ºC-43ºC -7ºC-43ºC -7ºC-43ºC
Ambient temperature range  -15ºC-48ºC -15ºC-48ºC -15ºC-48ºC -15ºC-48ºC
Application area   (MM2)  10~17 13~27 20~40 30~55
Sets per 40ft HQ/20ft   40HQ/20 308 /- 286/124 160 / - 120 / -
