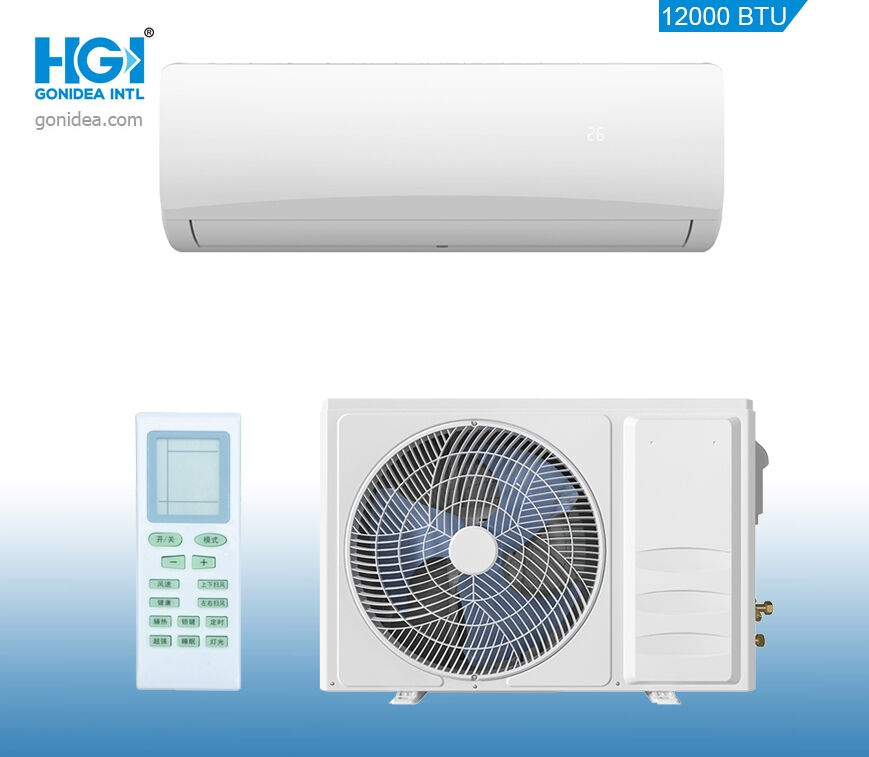

Fashionable Wall Mounted Air Conditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Air Conditioner Sp/J-35c11

Product Details

Payment & Shipping Terms

Minimum Order Quantity

100

Price

280

Product Description

Fashionable Wall Mounted Air Conditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Air Conditioner SP/J-35C11
Product Description

DC FIXED FREQUENCY			SP/J-T35C6	SP/J-T35CH6	SP/J-T50CH6	SP/J-T70CH6
Rated Power supply			1Ph / 230V/60Hz	1Ph / 230V/60Hz	1Ph / 230V/60Hz	1Ph / 230V/60Hz
Workable Power supply			1Ph / 198-264V/60Hz	1Ph / 198-264V/60Hz	1Ph / 198-264V/60Hz	1Ph / 198-264V/60Hz
Cooling T3		Capacity (btu/h)	12000	12000	18000	24000
		Capacity (W)	3300	3300	4770	6180
		Input (W)	1200	1200	1830	2290
		Rated current (A)	5.40	5.40	8.20	10.20
		EER(Btu/h/W/W)	9.38	9.38	8.89	9.21
		EER(W/W)	2.75	2.75	2.61	2.70
Heating		Capacity (btu/h)	/	11200	18000	24000
		Capacity (W)	/	3300	5280	7000
		Input (W)	/	900	1560	2100
		Rated current (A)	/	4.00	7.00	9.30
		EER(Btu/h/W/W)	/	12.51	11.55	11.37
		EER(W/W)	/	3.67	3.38	3.33
Max. input consumption (W)			1680	1680	2260	3000
Max. current (A)			8.6	8.6	11.6	14.6
Compressor		Type	Rotary	Rotary	Rotary	Rotary
Compressor		Brand	GMCC,GREE	GMCC,GREE	GMCC,GREE	GMCC,GREE
Indoor unit	Indoor Coil	Fin material	Golden& hydrophilic	Golden& hydrophilic	Golden& hydrophilic	Golden& hydrophilic
	Indoor Coil	Tube outside dia.and material	φ7mm, inner Grooved	φ7mm, inner Grooved	φ7mm, inner Grooved	φ7mm, inner Grooved
	Indoor air flow (Turbo/Hi/Mi/Lo) (M3/h)		850/750/650/580	850/750/650/580	1050/950/800/680	1150/980/800/700
	Rated input Power(cooling/heating) (W)		35	35	45	45
	Rated current (cooling/heating) (A)		0.35	0.35	0.4	0.4
	Moisture Removal (KG/h)		1.0	1.0	1.8	2.6
	Noise level(Turbo/Hi/Mi/Lo) (dB(A))		43/39/37/33	43/39/37/33	45/42/39/37	49/47/45/42
	Unit dimension (WHD)		910×295×205	910×295×205	1075×330×240	1075×330×240
	Packing (WHD)		975×340×255	975×340×255	1146×412×318	1146×412×318
	Net weight (KGs)		11	11	15	15
	Gross weight (KGs)		13	13	18	18
Outdoor unit	Outdoor coil	Fin material	Golden& hydrophilic	Golden& hydrophilic	Golden& hydrophilic	Golden& hydrophilic
	Outdoor coil	Tube outside dia.and material	φ7mm, Inner Grooved	φ7mm, Inner Grooved	φ7mm, Inner Grooved	φ7mm, Inner Grooved
	Noise level (dB)		52	52	55	58
	Unit dimension (WDH) (mm)		760×305×550	760×305×550	850×385×700	900×395×700
	Packing (WDH) (mm)		869×339×588	869×339×588	960×420×744	1033×439×733
	Net weight (KGs)		29	30	43	46
	Gross weight (KGs)		34	35	49	52
	Refrigerant type		R410A	R410A	R410A	R410A
Refrigerant pipe		Liquid side (mm)	Φ6	Φ6	Φ6	Φ6
		Gas side (mm)	Φ12	Φ12	Φ12	Φ15.88
		Max. refrigerant pipe length (m)	10	10	10	15
		Max. difference in level (m)	5	5	5	10
Operation temperature range			16ºC-52ºC	-7ºC-52ºC	-7ºC-52ºC	-7ºC-52ºC
Ambient temperature range			16ºC-55ºC	-7ºC-55ºC	-7ºC-55ºC	-7ºC-55ºC
Application area (MM2)			13~28	13~28	20~40	30~55
Sets per 40ft HQ/20ft 40HQ/20			267/-	267/-	146/-	135/61
