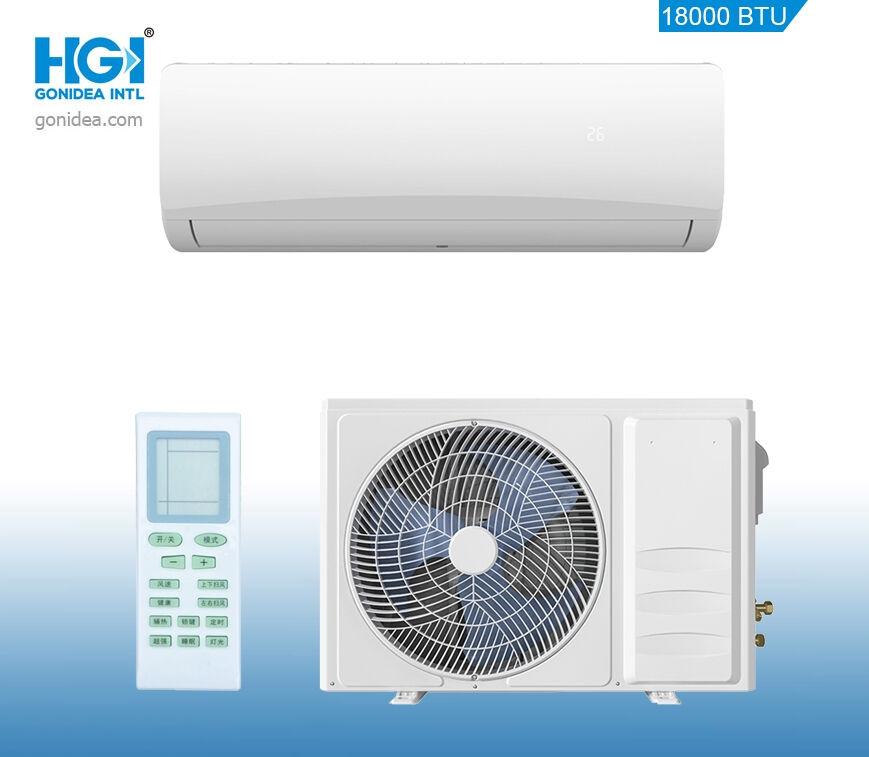

Fashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CH
Fashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CH

Fashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CH

Certification CE, CCC, RoHS, GS, CB
Product Details
Model NO.:
SP/J-BP3A-50CH
Usage:
Room
Indoor Machine Noise:
47/44/41/39
China Energy Efficiency Standard:
Level 2
Cooling/Heating:
Cooling/Heating
Power Source:
Electrical
Power Type:
DC
Condition:
New
Rated Power Supply:
1pH / 220-240V/50Hz
Ation Temperature Range:
-7℃-43℃
Transport Package:
Carton
Specification:
R410A
Trademark:
HGI
Origin:
China
HS Code:
8415102100
Production Capacity:
500000/PCS Per Year
Highlight:

Fashionable wall mounted air conditioner 18000BTU

,

Low-power inverter frequency air conditioner

,

Wall hanging air conditioner with warranty

Payment & Shipping Terms
Minimum Order Quantity
100
Price
280
Product Description
Fashionable Wall Mounted Air Conditioner Series 18000BTU A+++ Low-Power Operation Inverter Frequency Air Conditioner SP/J-BP3A-50CH
Product Description
DC INVERTERSP/J-BP3A-26CHSP/J-BP3A-35CHSP/J-BP3A-50CHSP/J-BP3A-70CH
Rated Power supply1Ph / 220-240V/50Hz1Ph / 220-240V/50Hz1Ph / 220-240V/50Hz1Ph / 220-240V/50Hz
Workable Power supply1Ph / 150-260V/50Hz1Ph / 150-260V/50Hz1Ph / 150-260V/50Hz1Ph / 150-260V/50Hz
CoolingCapacity (btu/h)9000120001800024000
Capacity (W)2600(150~3200)W3300(150~3900)W5300(1200-6200)7000(1500~8000)
Input (W)630(60~1100)W800(60~1400)W1250(120-1700)1760(135~2250)
Rated current (A)2.8 (0.3~4.9)A3.6(0.3~6.3)A5.6(1.3~7.5)7.8(1.4~10.0)
Pdesign (W)2600330052007000
EER8.508.509.358.90
HeatingCapacity (btu/h)9000120001800024000
Capacity (W)2800(150~3800)W3500(150~4500)W5800(1250-6600)7500(1500~9000)
Input (W)730(60~1100)W900(60~1400)W1500(160-1850)2050(170~2850)
Rated current (A)3.3(0.3~4.9)4.0(0.3~6.3)A6.6(1.5~8.2)9.2(1.6~12.5)
Pdesign (W)2450255045505600
COP4.604.604.84.60
Max. input consumption (W)1600172024003050
Max. current (A)8.009.0011.0013.70
CompressorBrandGMCCGMCCGMCCGMCC
TypeRotaryRotaryRotaryRotary
Indoor unitIndoor CoilFin materialGolden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&
Tube outside dia.and materialφ5mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Grooved
Indoor air flow (Turbo/Hi/Mi/Lo) (M3/h)600/500/450/400650/550/500/4501050/950/800/6801200/1100/950/800
Rated input Power(cooling/heating) (W)30303545
Rated current (cooling/heating) (A)0.20.20.350.4
Moisture Removal (KG/h)1.21.21.82.6
Noise level(Turbo/Hi/Mi/Lo) (dB(A))42/39/36/3342/39/36/3347/44/41/3949/47/45/42
Unit dimension (W*H*D)810*295*205810*295*205955x335x2301075*330*240
Packing (W*H*D)875*340*255875*340*2551020*400*3001146*412*318
Net weight (KGs)881215
Gross weight (KGs)10101418
Outdoor unitOutdoor coilFin materialGolden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&
Tube outside dia.and materialφ7mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Grooved
Noise level (dB)50525559
Unit dimension (W*D*H) (mm)710*295*495730*305*550850*385*700920*425*795
Packing (W*D*H) (mm)818*328*530835*340*580960*420*7441050*475*845
Net weight (KGs)2323.53846
Gross weight (KGs)2626.54250
Refrigerant typeR32R32R32R32
Refrigerant pipeLiquid side (mm)Φ6Φ6Φ6Φ6
Gas side (mm)Φ9Φ9Φ12Φ15.88
Max. refrigerant pipe length (m)10101015
Max. difference in level (m)55510
Operation temperature range-7ºC-43ºC-7ºC-43ºC-7ºC-43ºC-7ºC-43ºC
Ambient temperature range-15ºC-48ºC-15ºC-48ºC-15ºC-48ºC-15ºC-48ºC
Application area (MM2)10~1713~2720~4030~55
Sets per 40ft HQ/20ft 40HQ/20308 /-286/124160 / -120 / -
Fashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CHFashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CHFashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CHFashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CHFashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CHFashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CHFashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CHFashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CHFashionable Wall Mounted Air Conditioner Series 18000BTU a+++ Low-Power Operation Inverter Frequency Air Conditioner Sp/J-Bp3a-50CH
