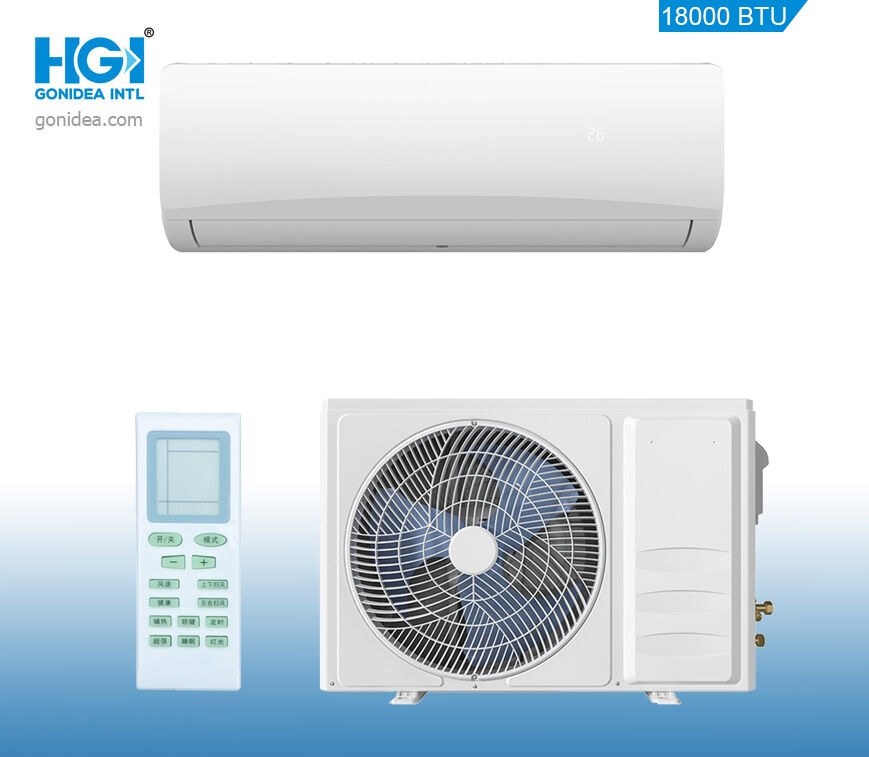

Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-50CH6
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-50CH6
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-50CH6
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-50CH6
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-50CH6
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-50CH6
Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-50CH6

Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-50CH6

Certification CE, CCC, RoHS, GS, CB
Product Details
Model NO.:
SP/J-50CH6
Usage:
Room
Indoor Machine Noise:
45/42/39/37
China Energy Efficiency Standard:
Level 2
Cooling/Heating:
Cooling Only
Power Source:
Electrical
Power Type:
DC
Condition:
New
Rated Power Supply:
1pH / 220-240V/50Hz
Ation Temperature Range:
-7℃-43℃
Transport Package:
Carton
Specification:
R410A
Trademark:
HGI
Origin:
China
HS Code:
8415102100
Production Capacity:
500000/PCS Per Year
Highlight:

Wall mounted air conditioner 18000BTU

,

Fixed frequency air conditioner low-power

,

Wall hanging air conditioner with warranty

Payment & Shipping Terms
Minimum Order Quantity
100
Price
280
Product Description
Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Fixed  Frequency Air Conditioner  SP/J-50CH6
Product Description

DC FIXED FREQUENCY SP/J-26CH6 SP/J-35CH6 SP/J-50CH6 SP/J-70CH6
Rated Power supply  1Ph / 220-240V/60Hz 1Ph / 220-240V/60Hz 1Ph / 220-240V/60Hz 1Ph / 220-240V/60Hz
Workable Power supply 1Ph / 185-260V/60Hz 1Ph / 185-260V/60Hz 1Ph / 185-260V/60Hz 1Ph / 185-260V/60Hz
Cooling Capacity  (btu/h) 9000 12000 18000 24000
Capacity  (W) 2500 3200 4800 6500
Input  (W) 900 1220 1800 2300
Rated current  (A) 4.10  5.70  8.10  10.70
EER 2.78  2.62  2.67  2.83
Heating Capacity  (btu/h) 9000 12000 18000 24000
Capacity  (W) 2500 3200 4800 6500
Input  (W) 900 1160 1800 2300
Rated current  (A) 4.10  5.40  8.10  10.70
COP 2.78  2.76  2.67  2.83
Max. input consumption   (W) 1300 1750/1650 2500 3000
Max. current  (A) 5.8 7.9/7.2 11.6 13.9
Compressor Type Rotary Rotary Rotary Rotary
Brand GREE,GMCC GMCC GMCC,ASF165N03UDTC GMCC,PA205M2A-3ET
Indoor unit  Indoor Coil  Fin material Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic&
Tube outside dia.and material φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Indoor air flow (Turbo/Hi/Mi/Lo)  (M3/h)  500/450/370/320 550/450/370/320 850/750/650/580 1050/950/800/680
Rated input Power(cooling/heating)  (W) 30 30 80 45
Rated current  (cooling/heating)  (A) 0.2 0.2 0.35 0.4
Moisture Removal  (KG/h) 0.8 0.8 2.6 2.6
Noise level(Turbo/Hi/Mi/Lo)  (dB(A)) 39/34/32/30 40/35/32/30 45/42/39/37 49/47/45/42
Unit dimension (W*H*D) 695×275×190 780×275×190 910×295×205 1075×330×240
Packing (W*H*D) 763×322×241 847×322×241 975×340×255 1146×412×318
Net weight  (KGs) 6 6.5 11 15
Gross weight  (KGs) 8 8.5 13 18
Outdoor unit  Outdoor coil Fin  material Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic&
Tube outside dia.and material φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Noise level  (dB) 50 52 55 59
Unit dimension (W*D*H)   (mm) 610×295×495 710×295×495 800(730)×305×550 850(780)×350×600
Packing   (W*D*H)  (mm)  704×324×530 818×328×530 835×340×580 896×387×625
Net weight  (KGs) 21 23 29 42
Gross weight  (KGs) 24 26 34 46
Refrigerant type R410A R410A R410A / 770g R410A
Refrigerant pipe Liquid side  (mm) Φ6 Φ6 Φ6 Φ6
Gas side  (mm) Φ9 Φ9 Φ12 Φ12
Max. refrigerant pipe length (m)  10 10 10 15
Max. difference in level  (m)  5 5 5 10
Operation temperature range  -7ºC-43ºC -7ºC-43ºC -7ºC-43ºC -7ºC-43ºC
Ambient temperature range  -7ºC-48ºC -7ºC-48ºC -7ºC-48ºC -7ºC-48ºC
Application area   (MM2)  10~17 13~27 20~40 30~55
Sets per 40ft HQ/20ft   40HQ/20 360/164 334/140 280/133 186/78
