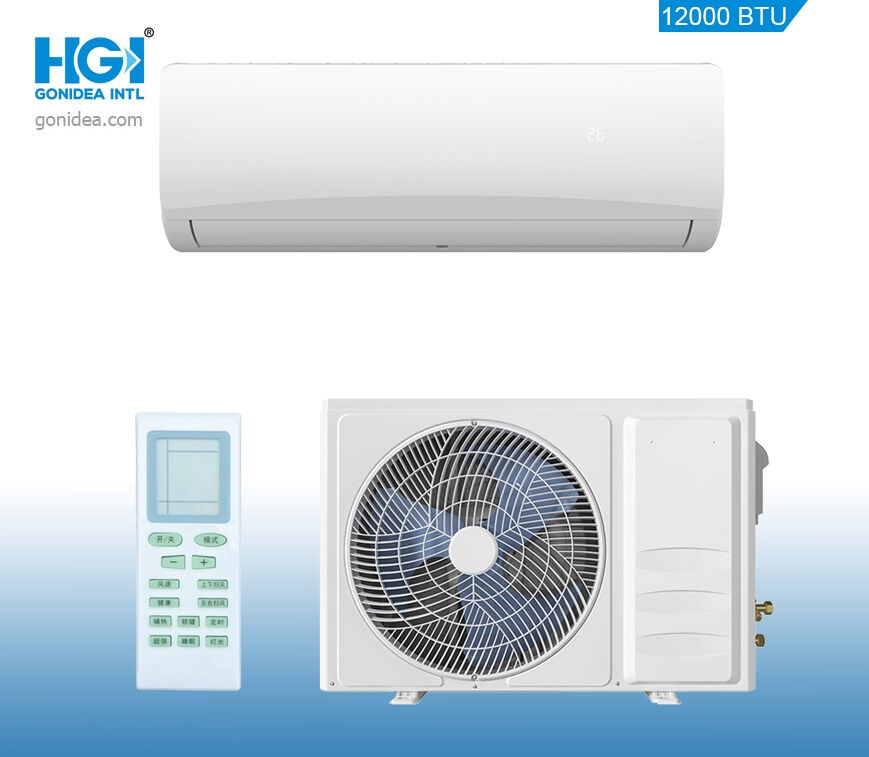

Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6
Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6

Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6

Certification CE, CCC, RoHS, GS, CB
Product Details
Model NO.:
SP/J-35C6
Usage:
Room
Indoor Machine Noise:
40/35/32/30
China Energy Efficiency Standard:
Level 2
Cooling/Heating:
Cooling Only
Power Source:
Electrical
Power Type:
DC
Condition:
New
Rated Power Supply:
1pH / 220-240V/50Hz
Ation Temperature Range:
16℃-43℃
Transport Package:
Carton
Specification:
R410A
Trademark:
HGI
Origin:
China
HS Code:
8415102100
Production Capacity:
500000/PCS Per Year
Highlight:

wall mounted air conditioner 12000BTU

,

fixed frequency air conditioner low-power

,

wall hanging AC with warranty

Payment & Shipping Terms
Minimum Order Quantity
100
Price
280
Product Description
Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner SP/J-35C6
Product Description
DC FIXED FREQUENCYSP/J-26C6SP/J-35C6SP/J-50C6SP/J-70C6
Rated Power supply1Ph / 220-240V/60Hz1Ph / 220-240V/60Hz1Ph / 220-240V/60Hz1Ph / 220-240V/60Hz
Workable Power supply1Ph / 185-260V/60Hz1Ph / 185-260V/60Hz1Ph / 185-260V/60Hz1Ph / 185-260V/60Hz
CoolingCapacity (btu/h)9000120001800024000
Capacity (W)2500320048006500
Input (W)900122018002300
Rated current (A)4.105.708.1010.70
EER2.782.622.672.83
HeatingCapacity (btu/h)////
Capacity (W)////
Input (W)////
Rated current (A)////
COP////
Max. input consumption (W)1300175026003000
Max. current (A)5.87.912.4013.9
CompressorTypeRotaryRotaryRotaryRotary
BrandGREE,GMCCGREEGMCC,ASF165N03UDTCGMCC,PA205M2A-3ET
Indoor unitIndoor CoilFin materialGolden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&
Tube outside dia.and materialφ7mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Grooved
Indoor air flow (Turbo/Hi/Mi/Lo) (M3/h)500/450/370/320550/450/370/320850/750/650/5801050/950/800/680
Rated input Power(cooling/heating) (W)30308045
Rated current (cooling/heating) (A)0.20.20.350.4
Moisture Removal (KG/h)0.80.82.62.6
Noise level(Turbo/Hi/Mi/Lo) (dB(A))39/34/32/3040/35/32/3045/42/39/3749/47/45/42
Unit dimension (W*H*D)695*275*190780*275*190910*295*2051075*330*240
Packing (W*H*D)763*322*241847*322*241975*340*2551146*412*318
Net weight (KGs)66.51115
Gross weight (KGs)88.51318
Outdoor unitOutdoor coilFin materialGolden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&
Tube outside dia.and materialφ5mm, Inner Groovedφ5mm, Inner Groovedφ5mm, Inner Groovedφ7mm, Inner Grooved
Noise level (dB)50525359
Unit dimension (W*D*H) (mm)610*295*495710*295*495800(730)*305*550850(780)*350*600
Packing (W*D*H) (mm)704*324*530818*328*530835*340*580896*387*625
Net weight (KGs)20212937
Gross weight (KGs)23243441
Refrigerant typeR410AR410AR410AR410A
Refrigerant pipeLiquid side (mm)Φ6Φ6Φ6Φ6
Gas side (mm)Φ9Φ9Φ12Φ12
Max. refrigerant pipe length (m)10101015
Max. difference in level (m)55510
Operation temperature range16ºC-43ºC16ºC-43ºC16ºC-43ºC16ºC-43ºC
Ambient temperature range16ºC-48ºC16ºC-48ºC16ºC-48ºC16ºC-48ºC
Application area (MM2)10~1713~2720~4030~55
Sets per 40ft HQ/20ft 40HQ/20360/164334/140280/133186/78
Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-35c6
