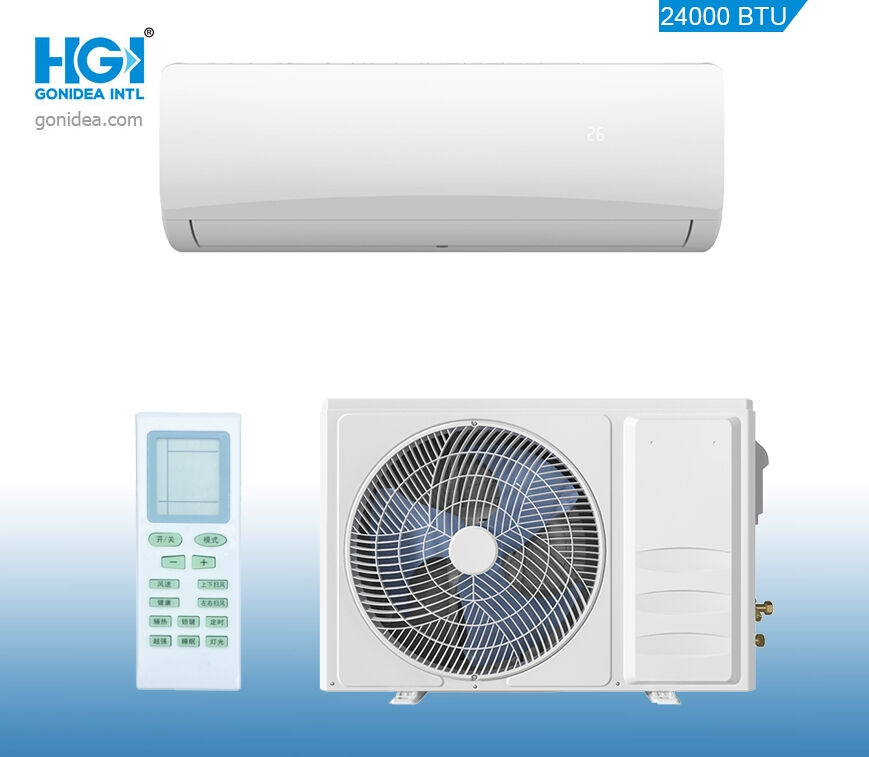

Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH

Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH

Certification CE, CCC, RoHS, GS, CB
Product Details
Model NO.:
SP/J-BP70CH
Usage:
Room
Indoor Machine Noise:
49/47/45/42
China Energy Efficiency Standard:
Level 2
Cooling/Heating:
Cooling Only
Power Source:
Electrical
Power Type:
DC
Condition:
New
Rated Power Supply:
1pH / 220-240V/50Hz
Ation Temperature Range:
-7℃-43℃
Transport Package:
Carton
Specification:
R410A
Trademark:
HGI
Origin:
China
HS Code:
8415102100
Production Capacity:
500000/PCS Per Year
Highlight:

Wall mounted air conditioner 24000BTU

,

Low-power inverter air conditioner

,

Fashionable wall hanging AC

Payment & Shipping Terms
Minimum Order Quantity
100
Price
280
Product Description
Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation INERTER Frequency Air Conditioner SP/J-BP70CH
Product Description
DC INVERTERSP/J-BP26CHSP/J-BP35CHSP/J-BP50CHSP/J-BP70CH
Rated Power supply 1Ph / 220-240V/50Hz1Ph / 220-240V/50Hz1Ph / 220-240V/50Hz1Ph / 220-240V/50Hz
Workable Power supply1Ph / 150-260V/50Hz1Ph / 150-260V/50Hz1Ph / 160-260V/50Hz1Ph / 160-260V/50Hz
CoolingCapacity  (btu/h)9000120001800024000
Capacity  (W)2500(150~3000)W3200(150~3500)W4800(1250-5910)6810(1830~7800)
Input  (W)900(100~1200)W1280(75~1560)W1780(330-2340)2350(410~2830)
Rated current  (A)4.0 (0.8~5.3)A5.7(0.5~6.9)A7.9(1.7~12.0)10.5(2.3~12.3)
EER2.78 2.50 2.70 2.90
HeatingCapacity  (btu/h)9000120001800024000
Capacity  (W)2800(150~3300)W3300(150~3700)W4800(1250-6070)6870(1850~7900)
Input  (W)960(75~1260)W1260(75~1580)W1670(340-2520)2240(420~3000)
Rated current  (A)4.3(0.5~5.6)5.6(0.5~7.0)A7.5(1.7~13.0)10.0(2.3~13.5)
COP2.92 2.622.87 3.07
Max. input consumption   (W)1600 1720 2520 3100
Max. current  (A)8.50 9.00 13.00 14.80
CompressorTypeRotaryRotaryRotaryRotary
BrandGMCC,GREEGMCCGMCCGMCC
Indoor unit Indoor Coil Fin materialGolden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&
Tube outside dia.and materialφ7mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Grooved
Indoor air flow (Turbo/Hi/Mi/Lo)  (M3/h) 500/450/370/320550/500/450/370850/750/650/5801050/950/800/680
Rated input Power(cooling/heating)  (W)30303545
Rated current  (cooling/heating)  (A)0.20.20.350.4
Moisture Removal  (KG/h)0.80.822.6
Noise level(Turbo/Hi/Mi/Lo)  (dB(A))39/34/32/3042/39/36/3345/42/39/3749/47/45/42
Unit dimension (W*H*D)695*275*190780*275*190910*295*2051075*330*240
Packing (W*H*D)763*322*241847*322*241975*340*2551146*412*318
Net weight  (KGs)671014
Gross weight  (KGs)891218
Outdoor unit Outdoor coilFin materialGolden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&Golden& hydrophilic&
Tube outside dia.and materialφ7mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Groovedφ7mm, Inner Grooved
Noise level  (dB)50525559
Unit dimension (W*D*H)   (mm)710*295*495710*295*495760*305*550780*350*600
Packing   (W*D*H)  (mm) 818*328*530818*328*530869*339*588896*387*625
Net weight  (KGs)20212430
Gross weight  (KGs)23242834
Refrigerant typeR410A / 520gR410A / 560gR410A / 770gR410A / 1070g
Refrigerant pipeLiquid side  (mm)Φ6Φ6Φ6Φ6
Gas side  (mm)Φ9Φ9Φ12Φ15.88
Max. refrigerant pipe length (m) 10101015
Max. difference in level  (m) 55510
Operation temperature range -7ºC-43ºC-7ºC-43ºC-7ºC-43ºC-7ºC-43ºC
Ambient temperature range -7ºC-48ºC-7ºC-48ºC-7ºC-48ºC-7ºC-48ºC
Application area   (MM2) 10~1713~2720~4030~55
Sets per 40ft HQ/20ft   40HQ/20340/-334/143267/-186/81
Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CHFashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CHFashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CHFashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CHFashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CHFashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CHFashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CHFashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CHFashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
